Connection and table security

Connection and table security are the first two gates in Reeflow’s data access control. Before any column or row filtering applies, a query must target an allowed connection and only reference allowed tables.

How connection security works

Connections are the outermost boundary for data access. A principal must have query permission on a connection before they can execute any queries against it.

Connection scope is defined in role permissions with two options:

• All connections: The principal can query any connection in the organization.
• Specific connections: The principal can only query connections in the allowed list.

When a query is executed, Reeflow checks if the target connection is within scope. If not, the request is denied before any SQL is generated.

Connection vs. retrieve permissions

The retrieve and query permissions on connections are independent. retrieve allows fetching connection metadata (name, status, schema), while query allows executing data queries. A principal might have retrieve access to see a connection in the Console but not query access to run queries against it.

How table security works

Within an allowed connection, table security controls which tables a principal can reference in queries. If a query references a table outside the allowed scope, the request is denied with an error.

Table scope is defined per connection with two options:

• All tables: The principal can query any table in the connection.
• Specific tables: The principal can only query tables in the allowed list.

Table matching rules

Rule	Behavior
Name normalization	Table names are normalized to fully qualified form (schema.table or dataset.table) before comparison. If a query uses an unqualified name like orders, Reeflow adds the connection’s default schema or dataset.
Allowed list format	The allowed list must use fully qualified names to match normalized queries.
Multi-table queries	All tables in joins and subqueries must be allowed. If any table is denied, the entire query fails.

Default vs. granular permissions

Permissions can apply broadly or to specific resources:

• All connections / All tables: Grants access to all current and future resources. Use this for internal roles that need broad access.
• Specific connections / Specific tables: Grants access only to the resources you select. Use this for embedded or restricted roles.

If no permission is defined for a resource, access is denied by default.

API implementation

When using the API, broad access is represented by a wildcard (*) in the scope. Reeflow checks for an exact match first, then falls back to the wildcard default. The Console handles this structure automatically.

Configuring permissions

Connection and table permissions are configured on roles. Each role defines what connections and tables principals can access when they assume that role.

Configure connection scope in the Console

Define which connections a role can query. You can grant access to all connections or restrict to specific ones.

1. Navigate to Roles
2. Click on a role to open it, then click Edit
3. Expand Connections and enable the Query action
4. Set the connection scope: All connections or Specific connections

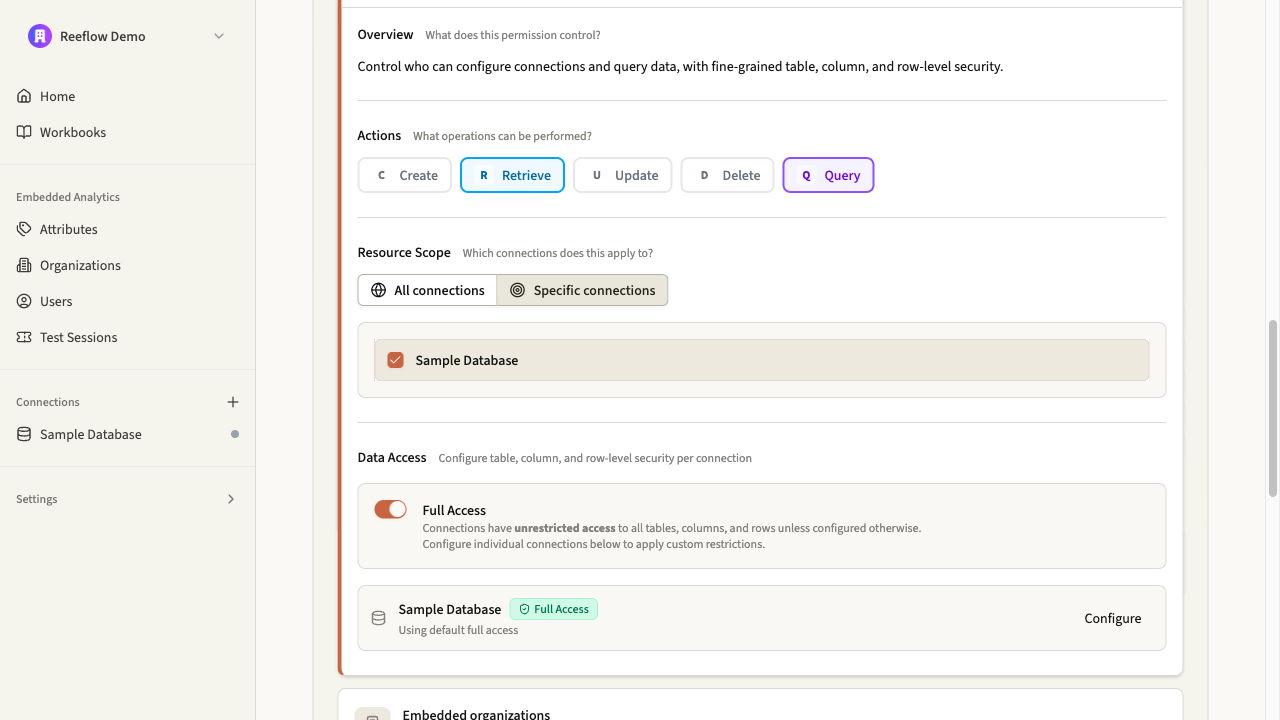

Role permissions showing connection scope configuration

Configure table scope in the Console

Within each connection, define which tables a role can query. Click Configure on a connection to access table-level settings.

1. Click Configure on a connection to open the query permissions sheet
2. Expand Tables
3. Set the table scope: All tables or Specific tables
4. If specific, select the tables to allow

Query permissions sheet showing table scope configuration

API implementation

For programmatic configuration, see the Roles API reference.

Error handling

Scenario	Result
Connection not in scope	403 Forbidden with “No query permission for this connection” (authorization failed before query processing)
Table not in allowed list	400 Bad Request with “Access denied to table ‘tableName’” (validation failed during SQL compilation)
