Roles

Roles are the central mechanism for controlling access in Reeflow. A role bundles permissions with user attribute rules, defining both what a principal can do and what context they must provide.

Concepts

Roles have four components:

• Permissions: Actions the role can perform on specific resources. See Permissions.
• Required user attributes: User attributes a principal must provide to assume the role. If missing, the role is skipped entirely.
• Fixed user attributes: Values the role provides, overriding any value the principal supplies. Use these to enforce constraints that principals cannot bypass.
• Principals: Entities that can be assigned roles: teams, API keys, and embedded users.

How roles work

When a principal makes a request, Reeflow resolves their effective permissions and user attributes in three steps:

1. Resolve assumable roles: Identify which of the principal’s assigned roles they can assume. A role is assumable only if the principal provides all its required user attributes. Roles without required user attributes are always assumable.
2. Merge permissions: Combine permissions from all assumable roles using union semantics. If any role grants an action, the principal can perform it.
3. Resolve user attributes: Start with the principal’s user attributes, then apply fixed user attributes from each assumable role. Fixed values override the principal’s values.

Example: Multi-tenant data isolation

An embedded user has a role that requires tenant_id and grants query access to the orders table with a row filter tenant_id = RF_USER_ATTR('tenant_id').

The principal provides tenant_id = 'acme' in their session token:

1. Role resolved: The role applies because tenant_id is provided.
2. User attributes resolved: tenant_id = 'acme'.
3. Result: Queries to orders are rewritten to SELECT * FROM orders WHERE tenant_id = 'acme'. Only Acme’s rows are returned.

Example: Missing required user attribute

Same role as above, but the backend is misconfigured and does not pass tenant_id in the session token:

1. Role resolved: The role is skipped because tenant_id is missing.
2. Result: No assumable roles, so no permissions apply. The API returns 403 Forbidden for any request.

Why this matters for embedded analytics

By marking a user attribute as required, you ensure the role can only be assumed when your backend explicitly provides that value. If your backend is misconfigured and omits the user attribute, the role is not assumed and the user gets no access. This is deny-by-default in action: a missing user attribute cannot accidentally grant broader access.

Permissions

Permissions control what actions a principal can perform on which resources. Each permission specifies an action and a scope.

Actions

Reeflow supports five actions:

Action	Purpose
create	Create new instances of a resource
retrieve	Read resource details
update	Modify existing resources
delete	Remove resources
query	Execute data queries through connections

The query action is special: it only applies to connections and enables table, column, and row-level security controls.

Scopes

Each permission uses a scope to specify which resource instances are accessible. There are two options:

• All instances: Grants access to every instance of the resource, including any created in the future.
• Specific instances: Restricts access to only the resource IDs you specify.

Resources not listed in a role’s permissions are denied by default.

Query permissions

Query permissions define what data a principal can access when querying a connection. They operate at four levels:

Level	What it controls	Example
Connection	Which connections can be queried	Allow queries only to the analytics connection
Table	Which tables can be queried within allowed connections	Restrict access to orders and customers only
Column	Which columns are visible per table	Hide salary from the employees table
Row	Which rows are returned, based on dynamic filters	Filter by tenant_id = RF_USER_ATTR('tenant_id')

For details on configuring these levels, see Connection and table security, Column-level security, and Row-level security.

Required vs. fixed user attributes

Roles can configure user attributes in two ways to enforce security constraints.

Type	Purpose	Behavior
Required	Ensure context is present before granting access	Role is skipped if the principal does not provide the user attribute
Fixed	Enforce a specific value that principals cannot override	Value is set by the role, ignoring any value the principal provides

A user attribute cannot be both required and have a fixed value on the same role. Required user attributes expect the principal to supply a value; fixed user attributes supply the value themselves.

When to use each

Use required user attributes when the value must come from your backend (like tenant_id in multi-tenant apps). Use fixed user attributes when the value is determined by the role itself (like access_tier = 'basic' for a free-tier role).

Example: Fixed user attributes override principal values

A role grants query access to the reports table with a fixed user attribute region = 'us' and a row filter region = RF_USER_ATTR('region').

The principal provides region = 'eu' in their session token:

1. Role resolved: The role applies (no required user attributes).
2. User attributes resolved: region = 'us' (fixed value overrides the principal’s 'eu').
3. Result: Queries filter to region = 'us'. The principal cannot access EU data by passing a different value.

Assigning roles to principals

Roles can be assigned to three types of principals:

Principal	How roles are assigned	Use case
Teams	Console or API	Platform users (team members) inherit permissions from their team’s roles
API keys	Console or API	Programmatic access for backend services, scheduled jobs, or integrations
Embedded users	Session tokens or API	End users in your application viewing embedded analytics

Session tokens (embedded users)

For embedded users, roles are typically assigned when creating a session token. This allows your backend to control access dynamically:

TypeScript

const API_KEY_ID = 'key_abc123xyz';
const API_KEY_SECRET = 'your-api-key-secret';

const credentials = Buffer.from(`${API_KEY_ID}:${API_KEY_SECRET}`).toString('base64');
const response = await fetch('https://api.reeflow.io/embed/sessions', {
  method: 'POST',
  headers: {
    Authorization: `Basic ${credentials}`,
    'Content-Type': 'application/json',
  },
  body: JSON.stringify({
    embedded_user: {
      external_user_id: 'user-123',
      role_ids: ['role_viewer', 'role_tenant_access'],
      attributes: {
        tenant_id: 'acme',
      },
    },
  }),
});

const { token } = await response.json();

How permissions merge

When a principal has multiple assumable roles, permissions are combined using union semantics:

Element	Merge behavior
Actions	If any role grants an action on a resource, the principal can perform it
Resource scope	If any role grants access to a resource instance, the principal can access it
Table scope	If any role grants access to a table, the principal can query it
Column scope	Visible columns are the union of all roles’ allowed columns
Row filters	Row filters from all roles are combined. All filters apply to every query

Row filters are additive

Unlike scopes (where any role granting access is sufficient), row filters from all roles are combined. This means more roles can result in more restrictive data access, since all row constraints must be satisfied.

Configuring roles

Create a role in the Console

Create a new role to define permissions and user attribute requirements for principals. This guide shows how to create a role with a required user attribute for multi-tenant security.

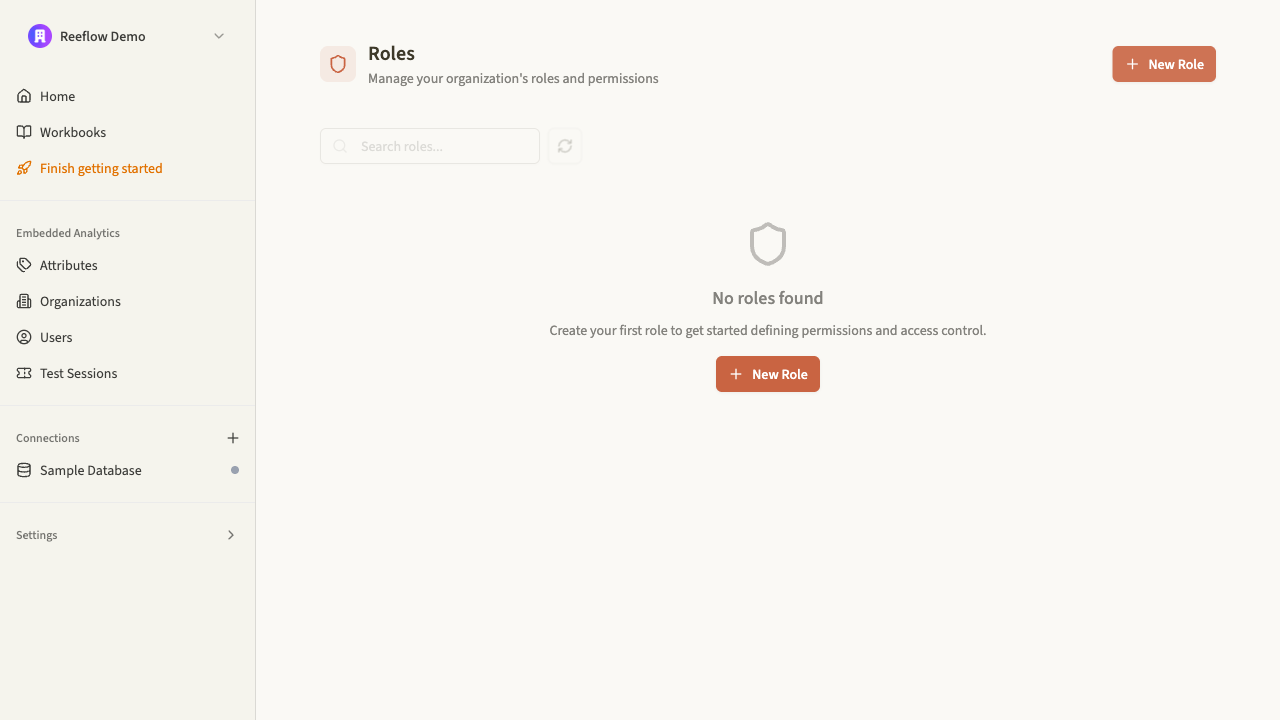

Navigate to Roles in the main navigation, then click New Role to open the form.

Enter a Name for the role. Choose a descriptive name that indicates what access the role provides.

Optionally add a Description to explain the role’s purpose and when to assign it.

Expand User Attributes and click Add Attribute. Select an attribute key and set it as Required. Principals must provide this attribute to assume the role.

Expand Connections and enable the Query action to allow data access. You can configure connection scope, table access, and row filters from here.

Click Create Role to save. The role now appears in the list and can be assigned to principals.

1

2

3

4

5

6

Navigate to Roles in the main navigation, then click New Role to open the form.

Enter a Name for the role. Choose a descriptive name that indicates what access the role provides.

Optionally add a Description to explain the role’s purpose and when to assign it.

Expand User Attributes and click Add Attribute. Select an attribute key and set it as Required. Principals must provide this attribute to assume the role.

Expand Connections and enable the Query action to allow data access. You can configure connection scope, table access, and row filters from here.

Click Create Role to save. The role now appears in the list and can be assigned to principals.

PreviousNext

For configuring query permissions (connections, tables, columns, and row filters), see:

• Connection and table security
• Column-level security
• Row-level security

API implementation

When using the API, manage roles via the /roles endpoints. For syntax details, see the Roles API reference.

Validation and constraints

Reeflow enforces the following constraints on roles:

Constraint	Limit
Name length	100 characters
Description length	500 characters
User attributes per role	10
Row constraints per table	10

User attribute keys referenced in role configuration must be defined in the organization. Attempting to use an undefined user attribute key returns an error.

Error handling

Scenario	Result
No assumable roles (missing required user attributes)	403 Forbidden
Required user attribute missing from principal	Role is skipped; may result in 403 Forbidden if no other roles apply
Action not permitted on resource	403 Forbidden
Invalid user attribute key in role configuration	400 Bad Request
